Mifare Plus SE 1K Bus Fare Collection Cards
Description
MIFARE Plus SE is the entry-level version of NXP's proven and reliable MIFARE Plus product family. Designed for full functional compatibility with MIFARE Classic 1K, it provides support for the MIFARE Classic value blocks. MIFARE Plus SE is the choice for customers who want to switch to higher security while preparing for the future by introducing cards, ready for AES security, into the existing system environment.
MIFARE Plus SE cards are easy to distribute into running MIFARE Classic systems since it uses a linear memory structure compatible to MIFARE Classic, and because MIFARE Plus SE supports all MIFARE Classic value-block operations in the Security Levels SL1 and SL3. MIFARE Plus SE stores its 128-bit AES keys on top of the data blocks. The optional AES authentication in SL1 enables efficient detection of cards not belonging to the system.
Features
- ● Entry-level version of the proven MIFARE Plus product family
- ● Simple fixed memory structure compatible with MIFARE Classic
- ● AES-128 for authenticity and integrity
- ● 1 kB EEPROM
- ● Freely configurable access conditions
- ● Optional support of random IDs
- ● Fully supports MIFARE Classic value block operations
- ● Supports ISO/IEC 14443-3 UIDs (4-Byte NUID, 7-byte UID)
Specification
Product |
Mifare Plus SE 1K Bus Fare CollectionCards |
Material |
PVC, PET, ABS |
Dimension |
85.6x54x0.84mm |
Color |
Black,White, Blue,Yellow, Red, Green, etc. |
Working frequency |
13.56MHz |
Protocol |
ISO14443A |
Waterproof level |
IP68 |
Personalization |
CMYK 4/4 printing, logo number UV spot, chip initialization, variable QR code printing, etc. |
Writing cycles |
100,000~200,000 times |
Data retention |
10 years |
Packing |
100pcs/pax, 200pcs/box, 3000pcs/carton |
Application
● Access management
● Car parking
● Electronic toll collection
● Employee cards

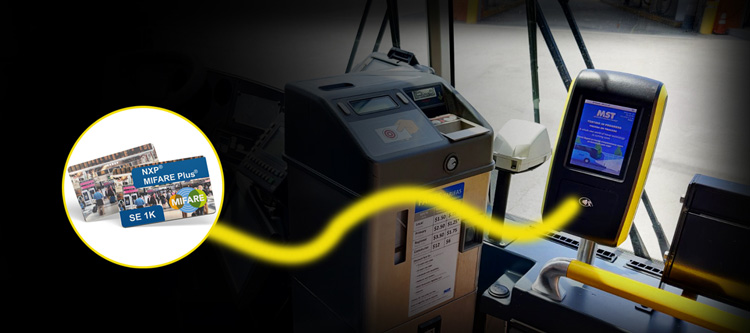

● Public transportation
● School and campus cards
