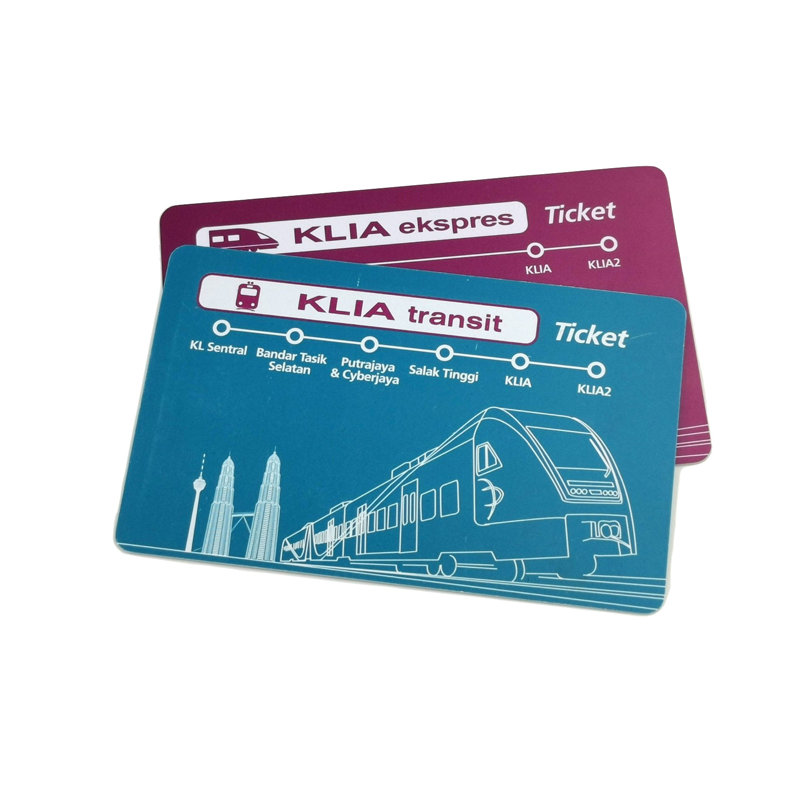

Mifare Plus S 2K Smart Cards for Ticketing
Description
Mifare plus S chips migrate classic contactless smart card systems to the next security level! MIFARE Plus brings benchmark security to mainstream contactless smart card applications. It is the only mainstream IC compatible with MIFARE Classic 1K (MF1ICS50) and MIFARE Classic 4K (MF1ICS70) which offers an upgrade path for existing infrastructures and services. After the security upgrade, MIFARE Plus uses AES-128 (Advanced Encryption Standard) for authentication, data integrity and encryption. MIFARE Plus is based on open global standards for both air interface and cryptographic methods at the highest security level.
Features
- ● 2 kB or 4 kB EEPROM
- ● Simple fixed memory structure compatible with MIFARE Classic 1K and MIFARE Classic 4K
- ● Memory structure identical to MIFARE Classic 4K (sectors, blocks)
- ● Supports ISO/IEC 14443 Type A1 UIDs (4-byte UID, 4 Byte NUID, 7-byte UID), optional support of random IDs
- ● AES-128 used for authenticity and integrity
Specification
Product |
Mifare Plus S 2K Smart Cards |
Material |
PVC |
Dimension |
85.6x54x0.84mm |
Color |
Black,White, Blue,Yellow, Red, Green, etc. |
Working frequency |
13.56MHz |
Protocol |
ISO14443A |
Waterproof level |
IP68 |
Personalization |
CMYK 4/4 printing, logo number UV spot, chip initialization, variable QR code printing, etc. |
Writing cycles |
100,000~200,000 times |
Data retention |
10 years |
Packing |
100pcs/pax, 200pcs/box, 3000pcs/carton |
Application
● Access management such as employee, school or campus cards
● Electronic toll collection
● Closed loop micro payment
● Car parking
● Internet cafés
● Loyalty programs
